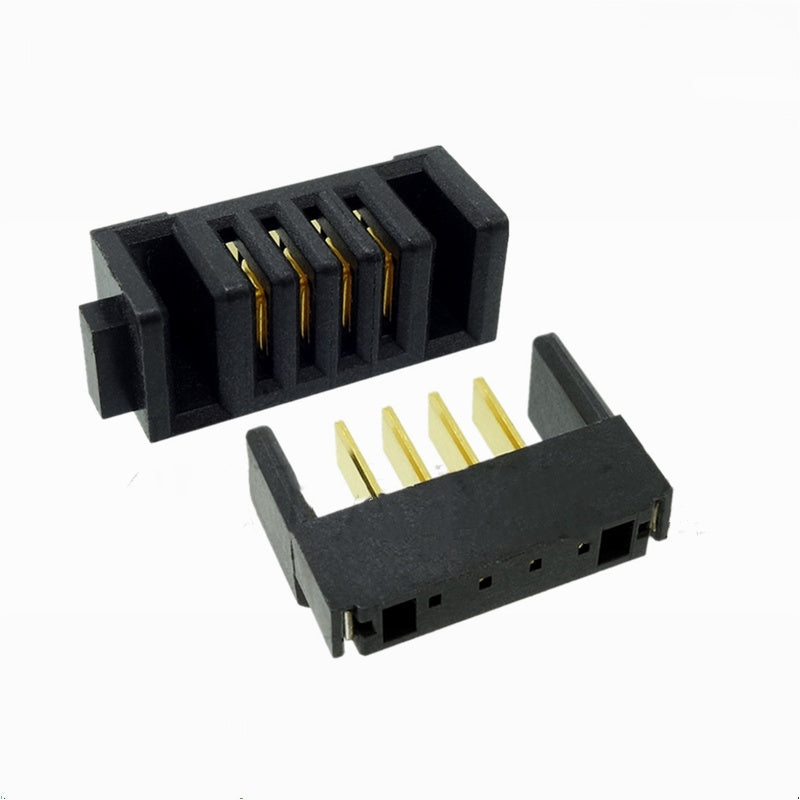

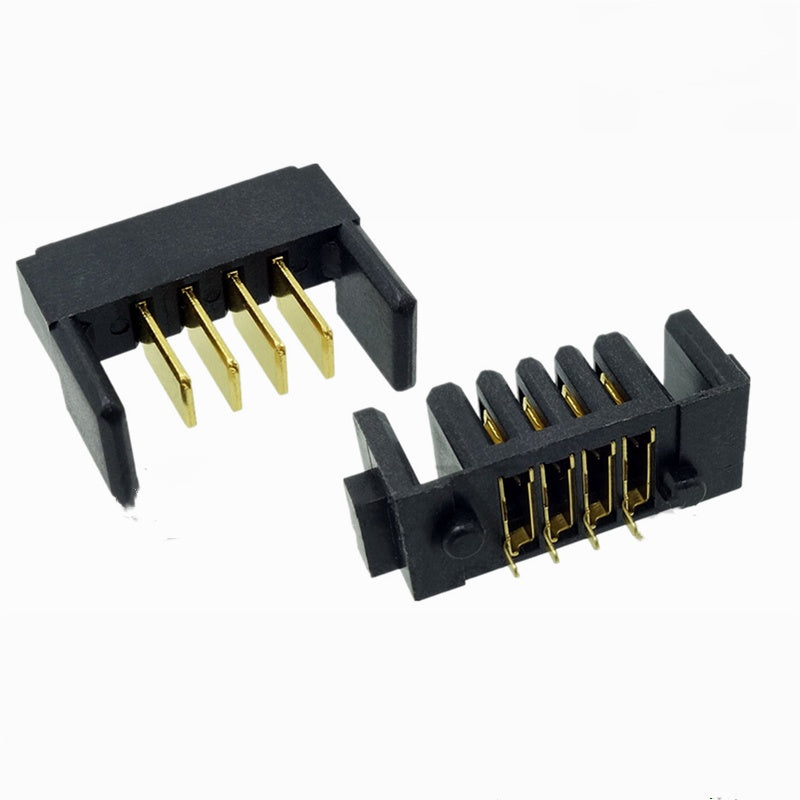

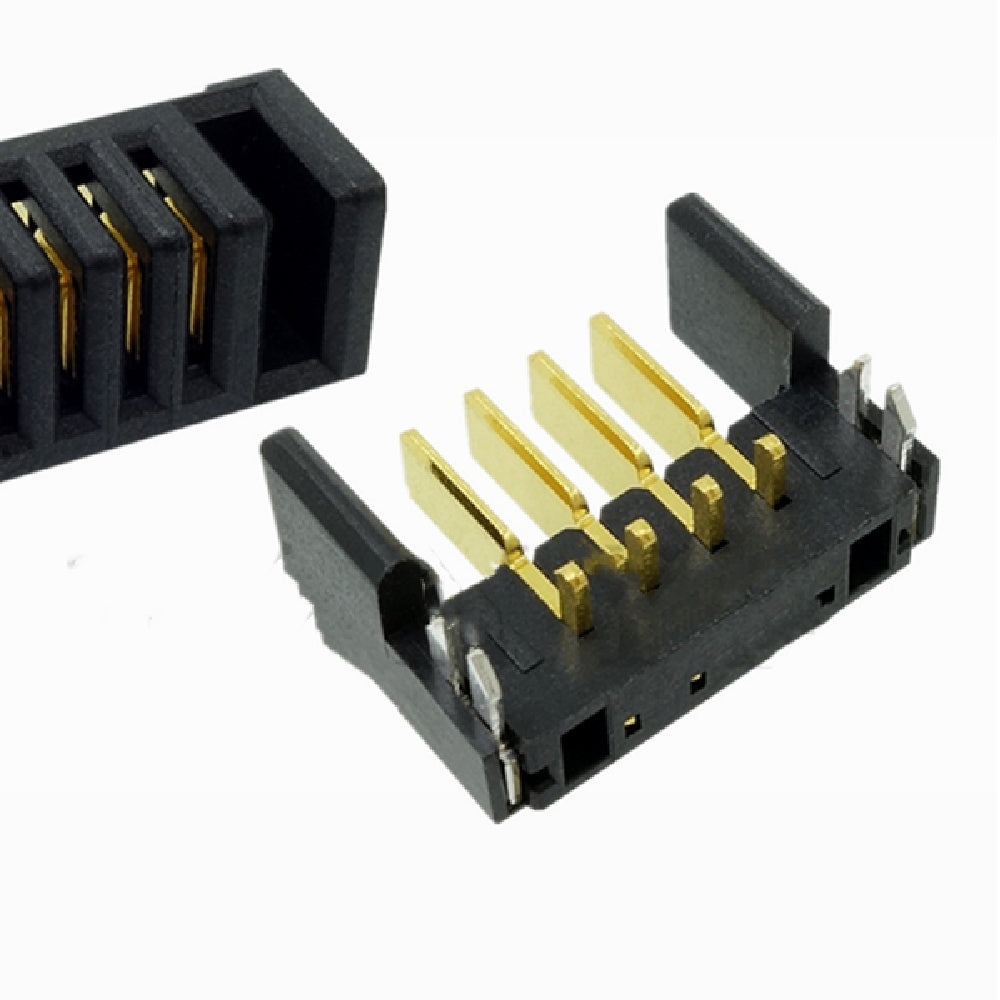

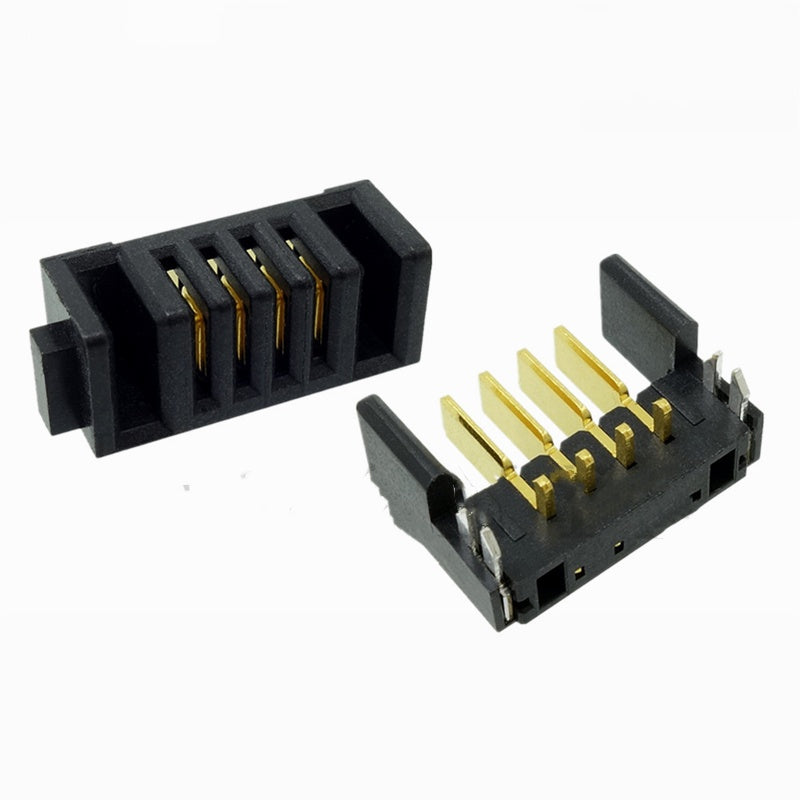

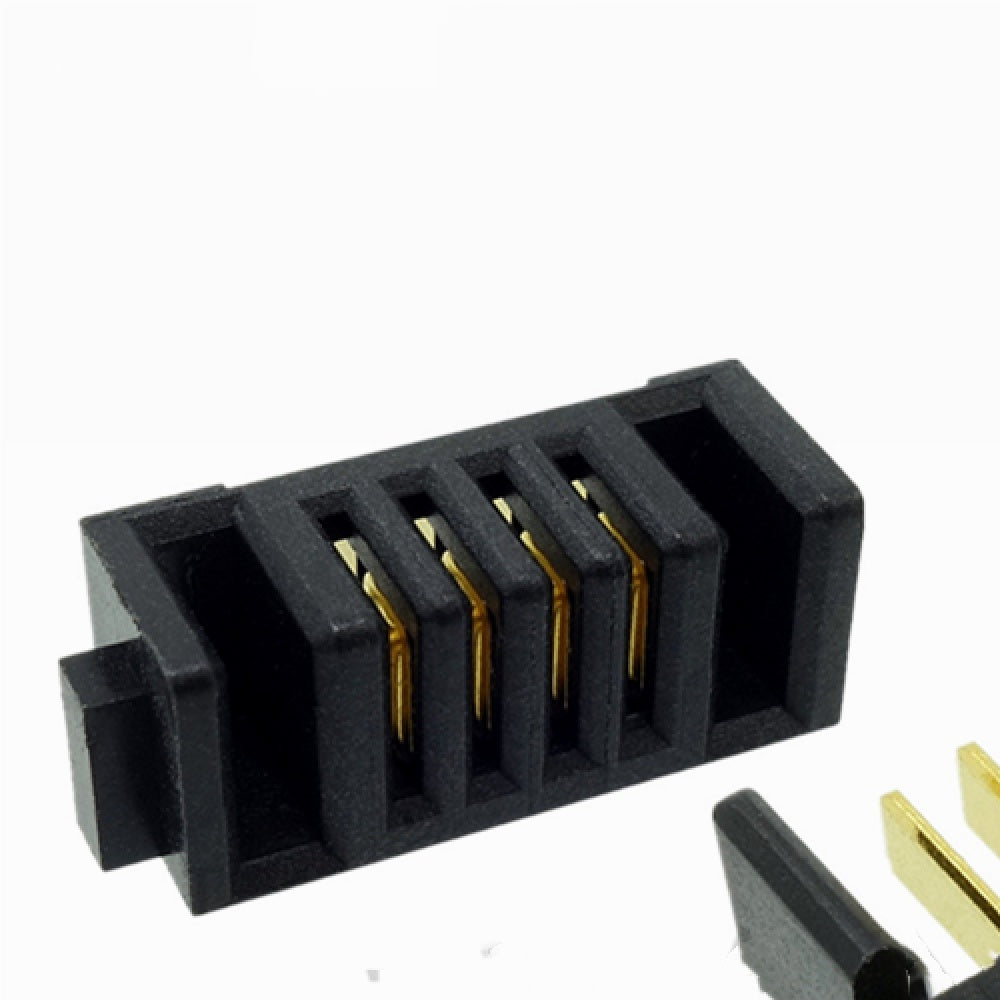

2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets
2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets

2.0 Pitch 4PIN Notebook Battery Connector Male And Female Sockets

£7.84
/
Tax included. Shipping calculated at checkout.
  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way

Product Information:
Material: Copper plated "2U", Nylon9T, LCP
Color: Black
Specifications: lnsertion force: 0.08

Hardware conductor: phosphor copper C5191
Resistance :100MQ
Rated current :7A/PIN
Instant current :10A/PIN
Rated power :125V AC/Min
Operating temperature :-40℃~105℃
High temperature resistance :260℃/5sec
Service life :5000 times


Product features:
This product environmental protection and high temperature resistance, widely used in household appliances, industrial equipment, instruments and other fields


Packing list:

Connector*1
